Array Average
Updated: 15 Sep 2026
Combines the points from an array to a single transform.
Array Average
Method #

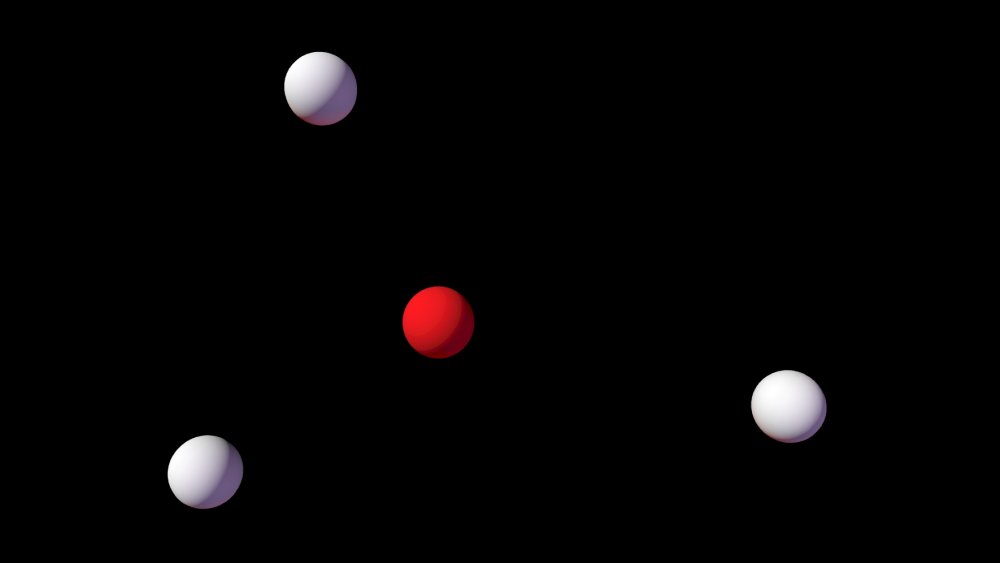

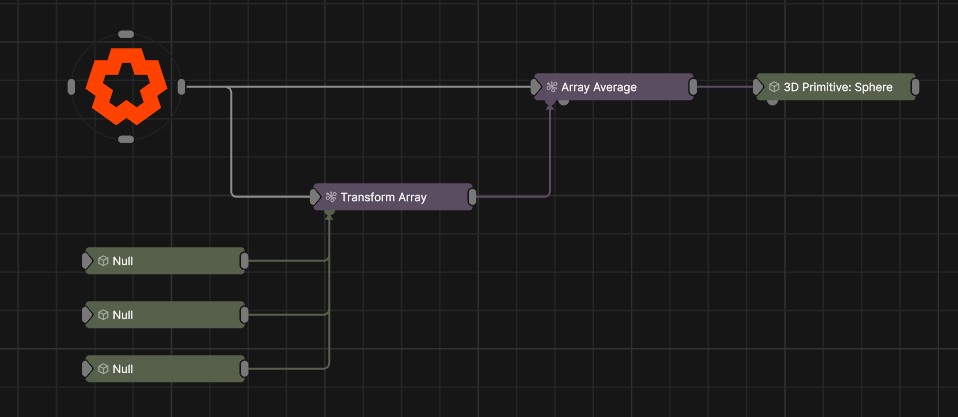

This node takes the points from an array and combines them based on the mode selected, to form a single output transform. Useful for extracting a particular transform in an array and using to control other elements in the scene.
Parameters
Control the inheritance of the transforms from the parent.
Parameter Details Position
Toggle inheritance of the Position from the parent.
Rotation
Toggle inheritance of the Rotation from the parent.
Scale
Toggle inheritance of the Scale from the parent.
World Position Only
Inherit the world position from the parent only, rotation and scale will be ignored. Overrides above properties.
Inherit Time
Toggle inheritance of time from the parent.
These properties control the core behaviours of the node.
Parameter Details Mode
Change what the array node does with the list of array nodes.
- Average : Averages all of the active points from the input transform system.
- Closest To Reference Points : Uses the point closest to a reference point specified in the reference point input.
- Largest : Uses the point with the greatest scale or the newest points if two points or more are the same size.
- Newest : Returns the most recently added point.
The properties control the time at which the node is active. See Timeline for editing time segments.
Parameter Details Duration
Control the duration of the node’s time segment.
- Composition Duration : Use the length of the composition for the node’s time segment duration.
- Custom : Set a custom duration for the node’s time segment.
Node Time
The custom start and end time for the node.
Duration (Timecode)
The length of the node’s time segment (in time).
Duration (Frames)
The length of the node’s time segment (in frames).
Time Segment Enabled
Set whether the node’s time segment is enabled or not in the Timeline.
Inputs
Control the inheritance of the transforms from the parent.
| Parameter | Details |
|---|---|
| Position | Toggle inheritance of the Position from the parent. |
| Rotation | Toggle inheritance of the Rotation from the parent. |
| Scale | Toggle inheritance of the Scale from the parent. |
| World Position Only | Inherit the world position from the parent only, rotation and scale will be ignored. Overrides above properties. |
| Inherit Time | Toggle inheritance of time from the parent. |
These properties control the core behaviours of the node.
| Parameter | Details |
|---|---|
| Mode |
Change what the array node does with the list of array nodes.
|
The properties control the time at which the node is active. See Timeline for editing time segments.
| Parameter | Details |
|---|---|
| Duration |
Control the duration of the node’s time segment.
|
| Node Time | The custom start and end time for the node. |
| Duration (Timecode) | The length of the node’s time segment (in time). |
| Duration (Frames) | The length of the node’s time segment (in frames). |
| Time Segment Enabled | Set whether the node’s time segment is enabled or not in the Timeline. |
| Name | Description | Typical Input |
|---|---|---|
| Point Array | Array of points used to perform operations based on. | Transform Array |
| Reference Point | Used with Closest To Point mode, the point which is checked against. | Null |
| Transform Modifiers | Apply the transforms of another node to this node. | Null |
| Target Node | Modifiy the rotations of the node to always direct the z axis towards the input. | Null |
| Local Transform Override | Apply the transforms of another node to this node, relative to its parent. | Null |
| Parameter Value Array | Used to set the parameters of the node using an array. | Parameter Array |
