Duplicate Geometry

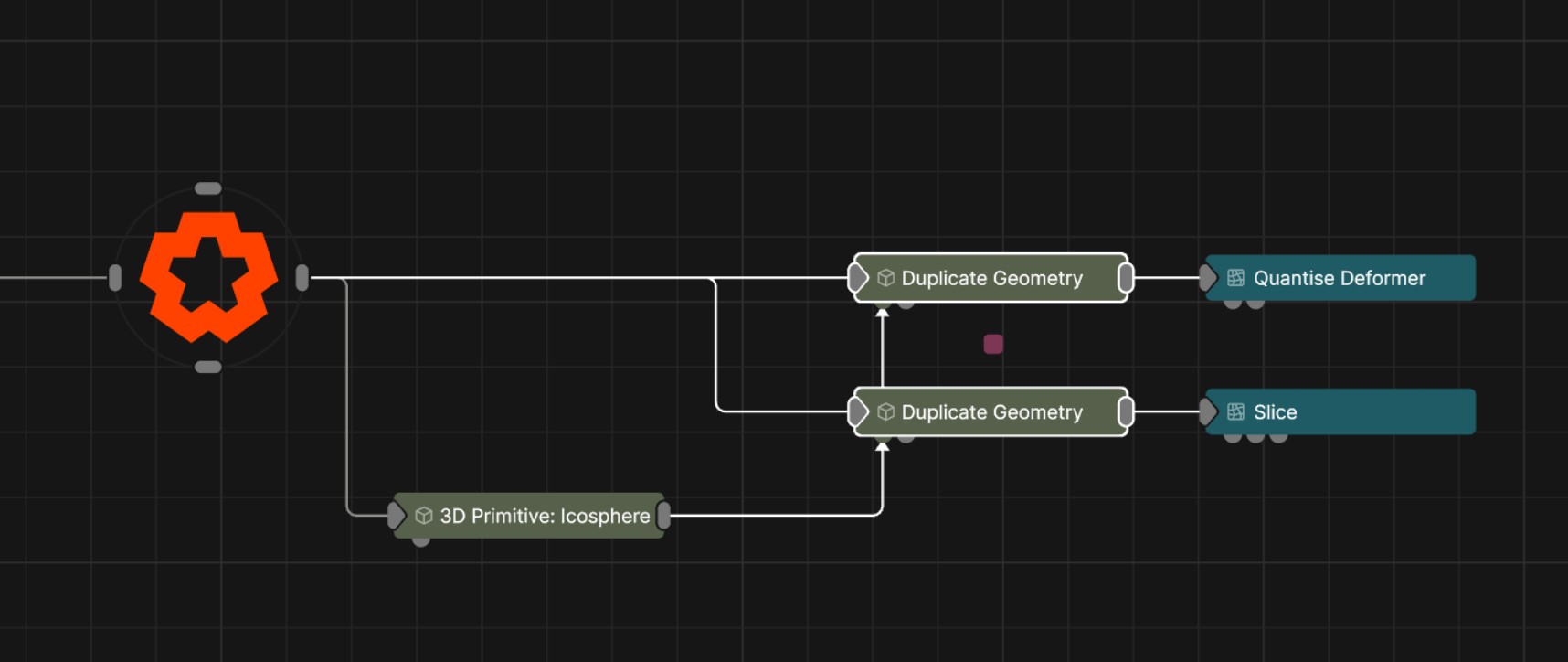

These properties control the 3D transforms of the node. Transforms will generally be inherited by child nodes, although they can be ignored through the Inherit Transform Channels attributes.

Parameter	Details
Position X	The objects position along the local x-axis.
Position Y	The objects position along the local y-axis.
Position Z	The objects position along the local z-axis.
Rotation Heading	The objects rotation around the local y-axis.
Rotation Pitch	The objects rotation around the local x-axis.
Rotation Bank	The objects rotation around the local z-axis.
Scale X	The objects scale along the local x-axis.
Scale Y	The objects scale along the local y-axis.
Scale Z	The objects scale along the local z-axis.

Control the inheritance of the transforms from the parent.

Parameter	Details
Position	Toggle inheritance of the Position from the parent.
Rotation	Toggle inheritance of the Rotation from the parent.
Scale	Toggle inheritance of the Scale from the parent.
World Position Only	Inherit the world position from the parent only, rotation and scale will be ignored. Overrides above properties.
Inherit Time	Toggle inheritance of time from the parent.

These properties control the core behaviours of the node.

Parameter	Details
Retain Source Materials	Control whether the materials applied to the source geometry is also applied to the duplicate.
Source Transform	Control whether the source transforms of the source geometry is also applied to the duplicate.

These properties control how the geometry is rendered into the scene.

Parameter	Details
Visible	Control whether the node is visible or not to the scene.
Seen By Rays	Allow the mesh to be seen by the raytracer. When set to 0, the mesh will still render in camera but will be ignored by any raytracing nodes.
Per Object Composite Alpha	Overwrites the alpha channel beneath the object, giving simple effect of transparency. Best used when the mesh won’t overlap with other objects, as other meshes will not be seen through the mesh.

These properties add options for drawing all the edges of the mesh as lines. Useful for rendering wireframe effects.

Parameter	Details
Lines Visible	Control whether lines are rendered to the scene from the geometry.
Lines Alpha	Change the alpha transparency value of the lines, making them appear see-through.
Colour	Change the colour value of the lines.
Use Vertex Colours	Colour lines based on the vertex colours of the geometry.
Blend Mode	How the object lines blends with the rest of the content in a 3d scene. See Blend Modes for details. Solid : The line rendering is treated as a solid object, and does not blend with anything behind it. Blend : The line rendering is blended with the rest of the content in the scene, with a subtle gradient over the line edges. Additive : The line rendering adds onto the rest of the content in the scene. Subtractive : The line rendering subtracts from the rest of the content in the scene. Multiply : The line rendering multiplies with the rest of the content in the scene. Max : The max value between the lines and the content behind it is used. Min : The min value between the lines and the content behind it is used. Light : The line rendering is blended using the light blend mode with the rest of the content in the scene. Screen : The line rendering is blended using the screen blend mode with the rest of the content in the scene. Pre-Mul Blend : The line rendering mis premultiplied before blending with the rest of the content in the scene.
Thick Lines	Allow the lines to rendered with thickness, for line effects which can be accurately anti-aliased.
Thick Line Width	Control the thickness of all the lines. Only functions with Thick Lines enabled.
Hide Back Face Lines	Hide the lines generated from polygon faces facing away from the camera, where only the back faces of geometry can be seen.
Lock Width	Lock the line width to be a consistent width regardless of distance from the camera. Only functions with Thick Lines enabled.
Show Silhouette Lines	Draws lines along the edges of the object relative to the camera.
Show Normal Difference Lines	Draw a line along the edges of the mesh, depending on the angle difference between their mutual faces.
Show Unshared Lines	Draw lines along all edges of the shape.
Show Other Lines	Show all the lines for each edge of the mesh.
Unshared Lines Weight	Control the strength of the unshared lines.
Silhouette Lines Weight	Control the strength of the silhouette lines.
Normal Difference Lines Weight	Control the strength of the lines generated along the normal angles.
Other Lines Weight	Control the strength of the lines for each edge in the mesh.
Line Normal Difference Angle	Change the threshold angle between two face normals that will generate a line along their common edge. Only functions with Show Normal Lines enabled.
Line Normal Fade Sharpness	How much the drawn normal lines will fade away the closer the edge angle is to the Line Normal Difference Angle.
Line Depth Bias	Exaggerate the width of the lines based on the distance to the camera. not functional with Lock Width enabled.
Line Silhouette Fade Sharpness	How much the drawn silhouette lines will fade away based on the size of the edge angle to the camera.

Preview the objects material in the viewport.

Parameter	Details
Preview in Viewport	Toggle a preview of the Material on a sphere in the Viewport.

These properties control how the surface of the generated mesh reacts to light in the scene. See Materials for a breakdown of all these properties individually.

BSDF

Parameter	Details
Colour	The colour of the material.
Brightness	The brightness of the material.
Specular Intensity	The intensity of the specular reflection.
Specular Colour	The colour of the specular reflection.
Colour Map -> Specular Colour	Use the input colour map as the specular reflection colour.
Specular Anisotropy	Controls the anisotropy of the specular reflection.
Specular Falloff	Controls the falloff of the specular reflection.
Diffuse Fresnel	Controls the fresnel effect on the diffuse reflection.
Metallicness	Controls the metallicness of the material.
Roughness	Controls the roughness of the material.
Normal Map Mode	Changes the format of the input normal map. Off : Tangent Space : Object Space :
Normal Map Intensity	TODO
Invert Normals	Flip the normals of each face, so the lighting is tested against the inside face.
Emissiveness	How much of a glow is emitted around the object.
Emissive Scattering	Controls how much Emissive lighting is scattered in the scene.
Emissive Lights Scene	Controls how much Emissive lighting contributes to lighting the scene.
Use Displacement	Enables the use of displacement mapping for the material. *Requires an input displacement map. Off : On :
Displacement	How much the deformer displaces the original mesh.
Displacement Offset	Adds an initial offset to the displacement.
Displacement - Use Polygon UVs	TODO
Opacity Mode	Controls the opacity mode of the material, and how it blends with the scene. Solid : Blend : Clip :
Alpha	Set the alpha amount of the material
Blend Mode	Change how the material once added to an object blends with the scene. Only functions with Alpha Mode for details. Solid : Linear : Additive : Subtractive : Multiply : Max : Min : Screen : Light : Pre-Mul Blend :
Alpha Sort Bias	Biases the alpha sort in order to make it render in front or behind other transparent objects.
Output Alpha In GBuffer Composite	Sends the alpha to the gbuffer composite pass.
Translucency	Controls the translucency mode of the material. Off : Refraction : Subsurface Scattering : Single Sided SSS :
Refraction IOR	TODO
Aberration	TODO
Absorption	How much light is absorbed by the material as light passes through it.
Absorption Colour	Colour to use for absorption.
Subsurface Weight	Weight of the subsurface scattering effect.
Subsurface Scatter Radius	Radius of the subsurface scattering effect.
Diffuse Coat	TODO
Diffuse Lightmap	Enables an input diffuse lightmap for the material. Off : On :
Baked Diffuse Intensity	TODO
Ambient Occlusion	Enables the input ambient occlusion map of the material. Off : On :

Textures

Parameter	Details
Colour Texture	Defines the base color of the material’s surface. It represents the surface color under neutral, uniform lighting.
Diffuse Map	Specifies the color of light that scatters off the surface in all directions. It is functionally similar to the Colour Texture and is a core component of a material’s appearance.
Specular Map	Controls the color and intensity of shiny reflections (specular highlights). Brighter areas on the map indicate a more reflective and shinier surface.
Emissiveness Map	Determines which parts of a material appear to glow or emit their own light. Brighter values cause the surface to act as a light source.
Metallicness Map	A grayscale map to define how ‘metal-like’ a surface is. White values represent pure metal, while black values represent non-metals.
Roughness Map	A grayscale map that controls the roughness of the surface. Black represents a smooth, mirror-like surface with sharp reflections, while white represents a rough surface with blurry, diffuse reflections.
Normal Map	Adds surface detail like bumps and scratches without adding more polygons to the model. It simulates how light would interact with a more complex surface, creating the illusion of depth.
Displacement Map	Physically displaces the vertices of the model’s geometry based on the map’s values. Unlike a Normal Map, this creates real geometric detail that affects the model’s silhouette.
Alpha Map	A grayscale map that controls the transparency of the material. Black areas are fully transparent, white areas are fully opaque, and gray values create semi-transparency.
Ambient Occlusion Map	Adds subtle, soft shadows to areas that are occluded from ambient light, such as creases and crevices. This enhances realism and adds perceived depth to the model.
Subsurface Colour Map	Defines the color of light after it has scattered beneath the surface of a translucent material, such as skin, wax, or marble.
Subsurface Weight Map	Controls the intensity of the subsurface scattering effect across the material, defining how much light penetrates and scatters within the surface.
UV Texture Filter Mode	Determines the algorithm used for sampling texture pixels when viewed at different angles and distances. Point : Bilinear : Anisotropic : Bicubic : Oversampling :
Diffuse Map -> AO	A setting to use the Diffuse or Colour map to contribute to the Ambient Occlusion calculation, often darkening areas based on the base color.
Texture Mip Bias	An offset that adjusts which mipmap level is used for a texture. Negative values can sharpen distant textures, while positive values can blur them.

UVs

Parameter	Details
Colour Texture UV	Select the UV for the Colour Texture. UV 1 : UV 2 : UV 3 : UV 4 :
Diffuse Map UV	Select the UV for the Diffuse Map Texture. UV 1 : UV 2 : UV 3 : UV 4 :
Specular Map UV	Select the UV for the Specular Map Texture. UV 1 : UV 2 : UV 3 : UV 4 :
Emissiveness Map UV	Select the UV for the Emissiveness Map Texture. UV 1 : UV 2 : UV 3 : UV 4 :
Metallicness Map UV	Select the UV for the Metallicness Map Texture. UV 1 : UV 2 : UV 3 : UV 4 :
Roughness Map UV	Select the UV for the Roughness Map Texture. UV 1 : UV 2 : UV 3 : UV 4 :
Normal Map UV	Select the UV for the CoNormal Map Texture. UV 1 : UV 2 : UV 3 : UV 4 :
Displacement Map UV	Select the UV for the Displacement Map Texture. UV 1 : UV 2 : UV 3 : UV 4 :
Alpha Map UV	Select the UV for the Alpha Map Texture. UV 1 : UV 2 : UV 3 : UV 4 :
Ambient Occlusion Map UV	Select the UV for the Ambient Occlusion Map Texture. UV 1 : UV 2 : UV 3 : UV 4 :
Subsurface Colour Map UV	Select the UV for the Subsurface Colour Texture. UV 1 : UV 2 : UV 3 : UV 4 :
Subsurface Weight Map UV	Select the UV for the Subsurface Weight Texture. UV 1 : UV 2 : UV 3 : UV 4 :
UV Scale X	Scale the UV texture along the X axis.
UV Scale Y	Scale the UV texture along the Y axis.
UV Offset X	Offset the UV texture along the X axis.
UV Offset Y	Offset the UV texture along the Y axis.
Diffuse UV Scale X	Scale the Diffuse UV texture along the X axis.
Diffuse UV Scale Y	Scale the Diffuse UV texture along the Y axis.
Diffuse UV Offset X	Offset the Diffuse UV texture along the X axis.
Diffuse UV Offset Y	Offset the Diffuse UV texture along the Y axis.
Texture Wrap Mode U	Controls how textures used by the material are wrapped when the U value range exceeds 0 to 1. Repeat : Clamp : Border With Black : Mirror :
Texture Wrap Mode V	Controls how textures used by the material are wrapped when the V value range exceeds 0 to 1. Repeat : Clamp : Border With Black : Mirror :
Diffuse Texture Filter Mode	Controls how textures used by the material are filtered. Point : Bilinear : Anisotropic : Bicubic : Oversampling :
Diffuse Texture Wrap Mode U	Controls how textures used by the material are wrapped when the U value range exceeds 0 to 1. Repeat : Clamp : Border With Black : Mirror :
Diffuse Texture Wrap Mode V	Controls how textures used by the material are wrapped when the V value range exceeds 0 to 1. Repeat : Clamp : Border With Black : Mirror :
UV Remap Filtering	Enables filtering for remapping UV’s. Only functions with eligible textures.

Lighting

Parameter	Details
Lit	Determines if the material is affected by lights in the scene. When disabled, the material appears fully lit by its own colour and texture, regardless of scene lighting.
Reflections Mode	Controls how the material generates reflections from its surroundings. Full Reflections : Env Map : Off :
Shadows	Defines how the object interacts with shadows in the scene. Cast + Receive : Cast : Receive : Off :
Shadow Catcher Colour	Set the colour of the material when “Shadows” is set to “Shadow Catcher”.
Render Visibility	Controls the object’s visibility to different types of rays in the renderer, which is useful for advanced effects. Full : Unseen by Rays : Unseen by Camera :
Raytracing Settings	Determines whether the material uses the scene’s global raytracing depth settings or custom values. Use Global Settings : Override :
Max. Diffuse Depth	Limits the number of times a ray can bounce off diffuse surfaces, affecting indirect lighting quality.
Max. Glossy Depth	Limits the number of times a ray can reflect off glossy or specular surfaces.
Max. Refraction Depth	Limits the number of times a ray can pass through refractive (transparent) surfaces.

Geometry

Parameter	Details
Polygon Sidedness	The orientation of the polygon’s faces. Front : Back : Double Sided :
Flip Polygons	Flips the orientation of the polygon’s faces.
Smoothing Angle	The angle difference used to determine a hard edge or a soft curve.
Wireframe	Displays the material’s geometry as a wireframe.

FX

Parameter	Details
Rim Lighting	Simulates Rim Lighting on the material with respect to the camera. Off : Rim Lighting :
Rim Lighting Use Material Colour	TODO
Rim Lighting Colour	TODO
Rim Lighting Intensity	TODO
Rim Lighting Falloff	TODO
Glow	Controls the glow of the Rim Lighting.

Vertex Colours

Parameter	Details
Vertex Colours - Apply To Colour	Set how the vertex colours apply to the colour of the mesh. No : Multiply by RGB : Multiply by Red : Multiply by Green : Multiply by Blue : Multiply by Alpha : Multiply by Inv Red : Multiply by Inv Green : Multiply by Inv Blue : Multiply by Inv Alpha :
Vertex Colours - Apply To Alpha	Set how the vertex colours apply to the alpha of the mesh. No : Multiply by Red : Multiply by Green : Multiply by Blue : Multiply by Alpha : Multiply by Inv Red : Multiply by Inv Green : Multiply by Inv Blue : Multiply by Inv Alpha :
Vertex Colours - Apply To Roughness	Set how the vertex colours apply to the roughness of the mesh. No : Multiply by Red : Multiply by Green : Multiply by Blue : Multiply by Alpha : Multiply by Inv Red : Multiply by Inv Green : Multiply by Inv Blue : Multiply by Inv Alpha :
Vertex Colours - Apply To Metallicness	Set how the vertex colours apply to the metallicness of the mesh. No : Multiply by Red : Multiply by Green : Multiply by Blue : Multiply by Alpha : Multiply by Inv Red : Multiply by Inv Green : Multiply by Inv Blue : Multiply by Inv Alpha :
Vertex Colours - Apply To Emissiveness	Set how the vertex colours apply to the emissiveness of the mesh. No : Multiply by Red : Multiply by Green : Multiply by Blue : Multiply by Alpha : Multiply by Inv Red : Multiply by Inv Green : Multiply by Inv Blue : Multiply by Inv Alpha :

Parameter	Details
Static Friction	How much resistance there will be for rigid bodies that are at rest relative to each other to begin moving.
Friction	How much other rigid bodies will be able to slide along side this rigid body. When two rigid bodies of different frictions interact, the minimum value is used.
Bounciness	How much this rigid body will bounce off of other rigid bodies in the scene.
Density	The density of the rigid body. The density is scaled by the area of the shape to determine the mass of the body.
Advanced	TODO
Collision Radius	The radius of collision shape if applicable.
Collision Mode	Mode for calculating collision if applicable. Volumetric : Surface :

The properties control the time at which the node is active. See Timeline for editing time segments.

Parameter	Details
Duration	Control the duration of the node’s time segment. Composition Duration : Use the length of the composition for the node’s time segment duration. Custom : Set a custom duration for the node’s time segment.
Node Time	The custom start and end time for the node.
Duration (Timecode)	The length of the node’s time segment (in time).
Duration (Frames)	The length of the node’s time segment (in frames).
Time Segment Enabled	Set whether the node’s time segment is enabled or not in the Timeline.
