Procedural Meshing

Procedural Meshing

Updated: 15 Sep 2026

Renders a procedural system as geometry.

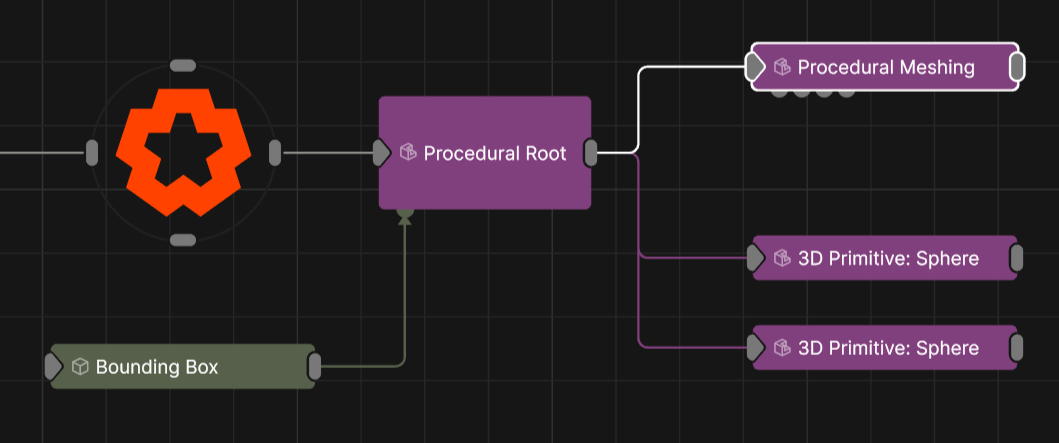

Example .dfx

Method #

Generates a surface from a procedural by first voxelising it, and then constructing a smoothed surface over the voxels. The surface produced is a triangle mesh which can be textured, deformed, can cast shadows, and can be used as a particle emitter among other things.

This node outputs the normal transformation and translation values, but it also outputs geometry which can be modified with Deformer nodes, or used as a mesh sources for nodes which accept mesh connections, such as the Field Mesh Emitter or the Procedural Mesh.

Parameters

These properties control the 3D transforms of the node. Transforms will generally be inherited by child nodes, although they can be ignored through the Inherit Transform Channels attributes.

ParameterDetails
Position X The objects position along the local x-axis.
Position Y The objects position along the local y-axis.
Position Z The objects position along the local z-axis.
Rotation Heading The objects rotation around the local y-axis.
Rotation Pitch The objects rotation around the local x-axis.
Rotation Bank The objects rotation around the local z-axis.
Scale X The objects scale along the local x-axis.
Scale Y The objects scale along the local y-axis.
Scale Z The objects scale along the local z-axis.

Control the inheritance of the transforms from the parent.

ParameterDetails
Position Toggle inheritance of the Position from the parent.
Rotation Toggle inheritance of the Rotation from the parent.
Scale Toggle inheritance of the Scale from the parent.
World Position Only Inherit the world position from the parent only, rotation and scale will be ignored. Overrides above properties.
Inherit Time Toggle inheritance of time from the parent.

These properties control the core behaviours of the node.

ParameterDetails
Grid Width Width of the adaptive voxel grid.
Grid Height Height of the adaptive voxel grid.
Grid Depth Depth of the adaptive voxel grid.
Update Mode Set how the procedural system updates.
  • Real-Time Dynamic : The mesh will be dynamically re-generated on every frame.
  • Dynamic : The mesh will be dynamically re-generated.
  • Static : The last-generated mesh will be cached and re-used as a static output.
Error Tolerance If the procedural distance field has too much distortion then it may be necessary to raise the error tolerance. a higher error tolerance may reduce performance, so this is a trade-off.
Adaptive Subdivisions Amount of subdivisions to apply to the mesh.Can be used to smooth out the mesh.
Smoothing Iterations Iteratively smoothes the meshes vertices by the number of levels specified, averaging out all the vertices in the mesh and producing a smoother result. Smoothing is done before rendering. High values can impact performance greatly, and may not be temporally stable if the underlying mesh changes.
HQ Smoothing When enabled, vertex positions will be projected back on to the procedural surface. this preserves sharp edges without increasing the voxel grid size.
Distance Field Normals Vertex normals will be extracted from the procedural distance field. this can be more accurate, but slower.
Generate Colours Uses colours set in procedural nodes (such as 3d primitive) to colourise the generated vertices. this can reduce performance slightly.
Generate UVs Generate texture coordinates at the generated vertices, for use with a material. this can reduce performance slightly.
Visible Control whether the node is visible or not to the scene.
Seen By Rays Allow the mesh to be seen by the raytracer. When set to 0, the mesh will still render in camera but will be ignored by any raytracing nodes.
Show Metrics Displays information about the amount of mesh geometry being generated.

These properties control how the surface of the generated mesh reacts to light in the scene. See Materials for a breakdown of all these properties individually.

BSDF

ParameterDetails
Colour The colour of the material.
Brightness The brightness of the material.
Specular Intensity The intensity of the specular reflection.
Specular Colour The colour of the specular reflection.
Colour Map -> Specular Colour Use the input colour map as the specular reflection colour.
Specular Anisotropy Controls the anisotropy of the specular reflection.
Specular Falloff Controls the falloff of the specular reflection.
Diffuse Fresnel Controls the fresnel effect on the diffuse reflection.
Metallicness Controls the metallicness of the material.
Roughness Controls the roughness of the material.
Normal Map Mode Changes the format of the input normal map.
  • Off :
  • Tangent Space :
  • Object Space :
Normal Map Intensity TODO
Invert Normals Flip the normals of each face, so the lighting is tested against the inside face.
Emissiveness How much of a glow is emitted around the object.
Emissive Scattering Controls how much Emissive lighting is scattered in the scene.
Emissive Lights Scene Controls how much Emissive lighting contributes to lighting the scene.
Use Displacement Enables the use of displacement mapping for the material. *Requires an input displacement map.
  • Off :
  • On :
Displacement How much the deformer displaces the original mesh.
Displacement Offset Adds an initial offset to the displacement.
Displacement - Use Polygon UVs TODO
Opacity Mode Controls the opacity mode of the material, and how it blends with the scene.
  • Solid :
  • Blend :
  • Clip :
Alpha Set the alpha amount of the material
Blend Mode Change how the material once added to an object blends with the scene. Only functions with Alpha Mode for details.
  • Solid :
  • Linear :
  • Additive :
  • Subtractive :
  • Multiply :
  • Max :
  • Min :
  • Screen :
  • Light :
  • Pre-Mul Blend :
Alpha Sort Bias Biases the alpha sort in order to make it render in front or behind other transparent objects.
Output Alpha In GBuffer Composite Sends the alpha to the gbuffer composite pass.
Translucency Controls the translucency mode of the material.
  • Off :
  • Refraction :
  • Subsurface Scattering :
  • Single Sided SSS :
Refraction IOR TODO
Aberration TODO
Absorption How much light is absorbed by the material as light passes through it.
Absorption Colour Colour to use for absorption.
Subsurface Weight Weight of the subsurface scattering effect.
Subsurface Scatter Radius Radius of the subsurface scattering effect.
Diffuse Coat TODO
Diffuse Lightmap Enables an input diffuse lightmap for the material.
  • Off :
  • On :
Baked Diffuse Intensity TODO
Ambient Occlusion Enables the input ambient occlusion map of the material.
  • Off :
  • On :

Textures

ParameterDetails
Colour Texture Defines the base color of the material’s surface. It represents the surface color under neutral, uniform lighting.
Diffuse Map Specifies the color of light that scatters off the surface in all directions. It is functionally similar to the Colour Texture and is a core component of a material’s appearance.
Specular Map Controls the color and intensity of shiny reflections (specular highlights). Brighter areas on the map indicate a more reflective and shinier surface.
Emissiveness Map Determines which parts of a material appear to glow or emit their own light. Brighter values cause the surface to act as a light source.
Metallicness Map A grayscale map to define how ‘metal-like’ a surface is. White values represent pure metal, while black values represent non-metals.
Roughness Map A grayscale map that controls the roughness of the surface. Black represents a smooth, mirror-like surface with sharp reflections, while white represents a rough surface with blurry, diffuse reflections.
Normal Map Adds surface detail like bumps and scratches without adding more polygons to the model. It simulates how light would interact with a more complex surface, creating the illusion of depth.
Displacement Map Physically displaces the vertices of the model’s geometry based on the map’s values. Unlike a Normal Map, this creates real geometric detail that affects the model’s silhouette.
Alpha Map A grayscale map that controls the transparency of the material. Black areas are fully transparent, white areas are fully opaque, and gray values create semi-transparency.
Ambient Occlusion Map Adds subtle, soft shadows to areas that are occluded from ambient light, such as creases and crevices. This enhances realism and adds perceived depth to the model.
Subsurface Colour Map Defines the color of light after it has scattered beneath the surface of a translucent material, such as skin, wax, or marble.
Subsurface Weight Map Controls the intensity of the subsurface scattering effect across the material, defining how much light penetrates and scatters within the surface.
UV Texture Filter Mode Determines the algorithm used for sampling texture pixels when viewed at different angles and distances.
  • Point :
  • Bilinear :
  • Anisotropic :
  • Bicubic :
  • Oversampling :
Diffuse Map -> AO A setting to use the Diffuse or Colour map to contribute to the Ambient Occlusion calculation, often darkening areas based on the base color.
Texture Mip Bias An offset that adjusts which mipmap level is used for a texture. Negative values can sharpen distant textures, while positive values can blur them.

UVs

ParameterDetails
Colour Texture UV Select the UV for the Colour Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
Diffuse Map UV Select the UV for the Diffuse Map Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
Specular Map UV Select the UV for the Specular Map Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
Emissiveness Map UV Select the UV for the Emissiveness Map Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
Metallicness Map UV Select the UV for the Metallicness Map Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
Roughness Map UV Select the UV for the Roughness Map Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
Normal Map UV Select the UV for the CoNormal Map Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
Displacement Map UV Select the UV for the Displacement Map Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
Alpha Map UV Select the UV for the Alpha Map Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
Ambient Occlusion Map UV Select the UV for the Ambient Occlusion Map Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
Subsurface Colour Map UV Select the UV for the Subsurface Colour Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
Subsurface Weight Map UV Select the UV for the Subsurface Weight Texture.
  • UV 1 :
  • UV 2 :
  • UV 3 :
  • UV 4 :
UV Scale X Scale the UV texture along the X axis.
UV Scale Y Scale the UV texture along the Y axis.
UV Offset X Offset the UV texture along the X axis.
UV Offset Y Offset the UV texture along the Y axis.
Diffuse UV Scale X Scale the Diffuse UV texture along the X axis.
Diffuse UV Scale Y Scale the Diffuse UV texture along the Y axis.
Diffuse UV Offset X Offset the Diffuse UV texture along the X axis.
Diffuse UV Offset Y Offset the Diffuse UV texture along the Y axis.
Texture Wrap Mode U Controls how textures used by the material are wrapped when the U value range exceeds 0 to 1.
  • Repeat :
  • Clamp :
  • Border With Black :
  • Mirror :
Texture Wrap Mode V Controls how textures used by the material are wrapped when the V value range exceeds 0 to 1.
  • Repeat :
  • Clamp :
  • Border With Black :
  • Mirror :
Diffuse Texture Filter Mode Controls how textures used by the material are filtered.
  • Point :
  • Bilinear :
  • Anisotropic :
  • Bicubic :
  • Oversampling :
Diffuse Texture Wrap Mode U Controls how textures used by the material are wrapped when the U value range exceeds 0 to 1.
  • Repeat :
  • Clamp :
  • Border With Black :
  • Mirror :
Diffuse Texture Wrap Mode V Controls how textures used by the material are wrapped when the V value range exceeds 0 to 1.
  • Repeat :
  • Clamp :
  • Border With Black :
  • Mirror :
UV Remap Filtering Enables filtering for remapping UV’s. Only functions with eligible textures.

Lighting

ParameterDetails
Lit Determines if the material is affected by lights in the scene. When disabled, the material appears fully lit by its own colour and texture, regardless of scene lighting.
Reflections Mode Controls how the material generates reflections from its surroundings.
  • Full Reflections :
  • Env Map :
  • Off :
Shadows Defines how the object interacts with shadows in the scene.
  • Cast + Receive :
  • Cast :
  • Receive :
  • Off :
Shadow Catcher Colour Set the colour of the material when “Shadows” is set to “Shadow Catcher”.
Render Visibility Controls the object’s visibility to different types of rays in the renderer, which is useful for advanced effects.
  • Full :
  • Unseen by Rays :
  • Unseen by Camera :
Raytracing Settings Determines whether the material uses the scene’s global raytracing depth settings or custom values.
  • Use Global Settings :
  • Override :
Max. Diffuse Depth Limits the number of times a ray can bounce off diffuse surfaces, affecting indirect lighting quality.
Max. Glossy Depth Limits the number of times a ray can reflect off glossy or specular surfaces.
Max. Refraction Depth Limits the number of times a ray can pass through refractive (transparent) surfaces.

Geometry

ParameterDetails
Polygon Sidedness The orientation of the polygon’s faces.
  • Front :
  • Back :
  • Double Sided :
Flip Polygons Flips the orientation of the polygon’s faces.
Smoothing Angle The angle difference used to determine a hard edge or a soft curve.
Wireframe Displays the material’s geometry as a wireframe.

FX

ParameterDetails
Rim Lighting Simulates Rim Lighting on the material with respect to the camera.
  • Off :
  • Rim Lighting :
Rim Lighting Use Material Colour TODO
Rim Lighting Colour TODO
Rim Lighting Intensity TODO
Rim Lighting Falloff TODO
Glow Controls the glow of the Rim Lighting.

Vertex Colours

ParameterDetails
Vertex Colours - Apply To Colour Set how the vertex colours apply to the colour of the mesh.
  • No :
  • Multiply by RGB :
  • Multiply by Red :
  • Multiply by Green :
  • Multiply by Blue :
  • Multiply by Alpha :
  • Multiply by Inv Red :
  • Multiply by Inv Green :
  • Multiply by Inv Blue :
  • Multiply by Inv Alpha :
Vertex Colours - Apply To Alpha Set how the vertex colours apply to the alpha of the mesh.
  • No :
  • Multiply by Red :
  • Multiply by Green :
  • Multiply by Blue :
  • Multiply by Alpha :
  • Multiply by Inv Red :
  • Multiply by Inv Green :
  • Multiply by Inv Blue :
  • Multiply by Inv Alpha :
Vertex Colours - Apply To Roughness Set how the vertex colours apply to the roughness of the mesh.
  • No :
  • Multiply by Red :
  • Multiply by Green :
  • Multiply by Blue :
  • Multiply by Alpha :
  • Multiply by Inv Red :
  • Multiply by Inv Green :
  • Multiply by Inv Blue :
  • Multiply by Inv Alpha :
Vertex Colours - Apply To Metallicness Set how the vertex colours apply to the metallicness of the mesh.
  • No :
  • Multiply by Red :
  • Multiply by Green :
  • Multiply by Blue :
  • Multiply by Alpha :
  • Multiply by Inv Red :
  • Multiply by Inv Green :
  • Multiply by Inv Blue :
  • Multiply by Inv Alpha :
Vertex Colours - Apply To Emissiveness Set how the vertex colours apply to the emissiveness of the mesh.
  • No :
  • Multiply by Red :
  • Multiply by Green :
  • Multiply by Blue :
  • Multiply by Alpha :
  • Multiply by Inv Red :
  • Multiply by Inv Green :
  • Multiply by Inv Blue :
  • Multiply by Inv Alpha :
ParameterDetails
Preview in Viewport Toggle a preview of the Material on a sphere in the Viewport.
ParameterDetails
Cell Capacity Used The percentage of voxel cells that are currently being actively calculated.
Num Vertices The number of vertices in the last mesh output by the node, reported after generation.
Num Triangles The number of triangles in the last mesh output by the node, reported after generation.
Memory Allocated For Simulation The amount of memory allocated for the simulation.
ParameterDetails
Baked Shader The compiled internal shader used by the procedural emitter. Drag an FX shader resource here to replace the built-in behaviour.

The properties control the time at which the node is active. See Timeline for editing time segments.

ParameterDetails
Duration Control the duration of the node’s time segment.
  • Composition Duration : Use the length of the composition for the node’s time segment duration.
  • Custom : Set a custom duration for the node’s time segment.
Node Time The custom start and end time for the node.
Duration (Timecode) The length of the node’s time segment (in time).
Duration (Frames) The length of the node’s time segment (in frames).
Time Segment Enabled Set whether the node’s time segment is enabled or not in the Timeline.

Inputs

NameDescriptionTypical Input
Procedural RootUse a Procedural Root as an input, so the renderer is treated separately from the roots transforms. In this case, the renderer itself would be connected to the scene Root node.Procedural Root
Render TransformTakes the transformation of another node and applies it to the rendered mesh.Null
MaterialA material to apply to the rendered meshMaterials
Bounding BoxThe region in which the surface will be voxelised and generatedBounding Box
Transform ModifiersApply the transforms of another node to this node.Null
Target NodeModifiy the rotations of the node to always direct the z axis towards the input.Null
Local Transform OverrideApply the transforms of another node to this node, relative to its parent.Null
Parameter Value ArrayUsed to set the parameters of the node using an array.Parameter Array
