Custom Shader Affector

Updated: 29 Jun 2026

Method #

See Working With Custom Shaders for an overview on managing .fx resources and HLSL scripts in Notch.

This node allows you to add a custom .fx shader script as a Particle Affector. This then lets you create your own custom particle affectors using shader code. This is a great way of expanding the capabilities of particle systems in Notch, and with careful design and implementation can lead to endless possibilities of innovative, efficient particle-based looks. Notch shaders are written in HLSL.

Custom Particle Affectors allow for the manipulation of velocity, colour, normals, scale (via the normal buffer’s w component) of particles via your own code. For an overview of particle systems and how to use affectors within them, see This Page.

This node receives information on a particle system once per frame. As determined by your HLSL code, you can perform operations on that data and use it to affect the behaviour of particles. You can also define your own variables that can be controlled from the Property Editor or via modifiers, just like other parameters in Notch.

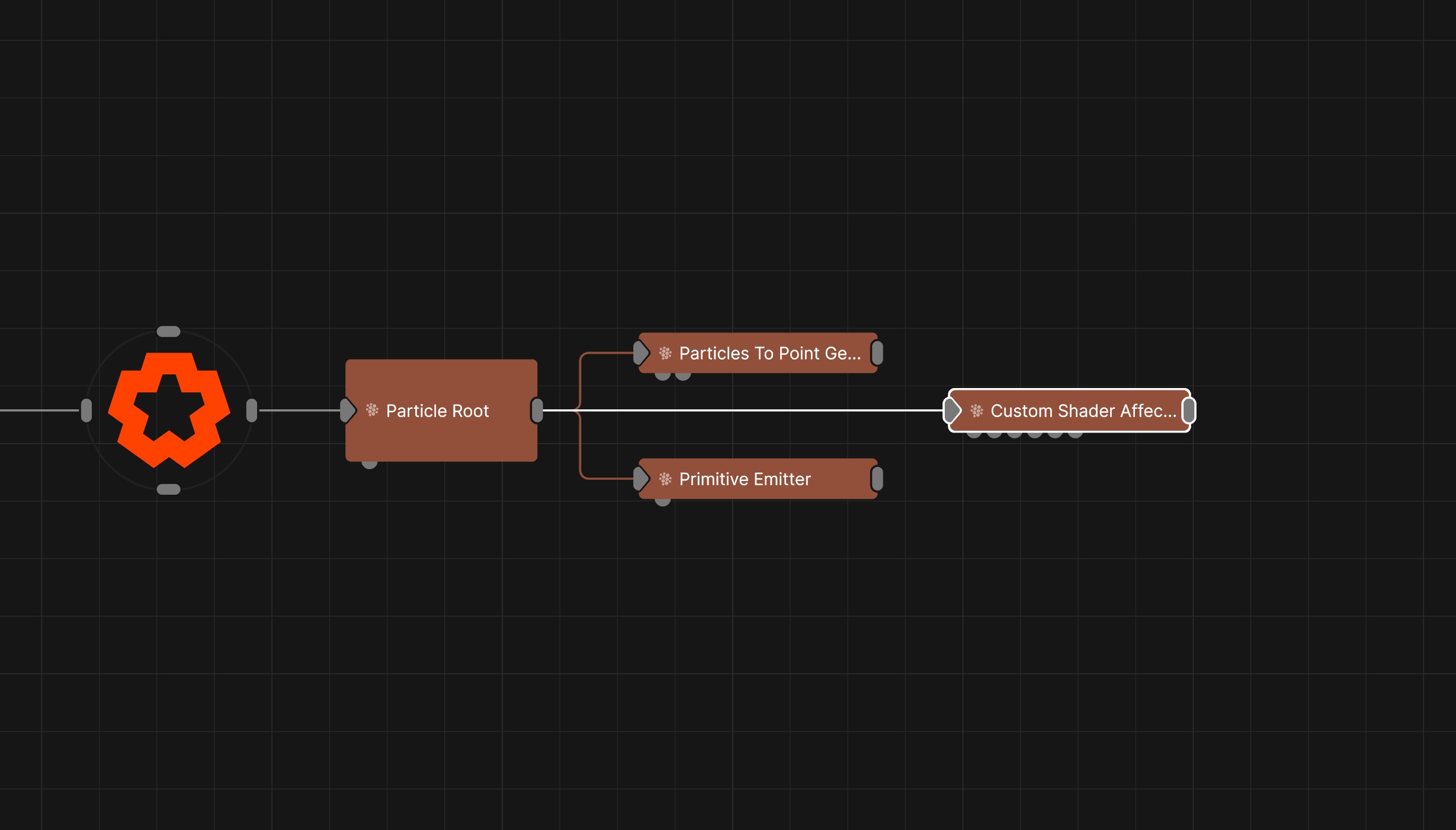

As with all particle affectors, the order of nodes in the node graph will impact the order of operation and therefore the behaviour of particle affectors. In short, affectors that are placed at the top left of the node graph will be processed first, then those that are lower down. For more information on this, see this section on Node Hierarchy and Data Flow

Custom Shader Particle Affectors require the implementation of your own code to determine the behaviour of the affector, and requires some knowledge of these systems to implement. Use of custom shaders is at your own risk. 10Bit does not provide support for custom shader code. If you experience an issue with a project/block you will need to demonstrate your issue without your custom shader in the nodegraph, to be able to receive support from the 10bit team. Support is only available for issues specifically related to the functionality of the Custom Shader Node, not for any custom code. External tools are available that can provide good assistance in writing these nodes when provided with the example script.

Understanding the Example Particle Effector #

Once you have gotten set up with the example script you are ready to start reading and customising it. This script uses mathematical functions to animate the velocity, scale and colour of the particles it acts on, as determined by it’s amount value and it’s falloff properties (the falloff applies a weighting to each particle that can be used to set how much the affector acts on any given particle).

Within this file:

• Buffers are created to receive and hold information about the particle system at the time the affector is applied. These incoming values are read once per frame.
• Variables are created that will control the effect. These variables can be named as you choose, and can be controlled via the Property Editor or by using modifiers just like other properties in Notch.
• The falloff properties of the node are used to control the effect on a particle by particle basis.
• The functionality of this affector is determined inside of the function CS_GenerateAffectorVelocities. This function is run once per frame, per particle. N.B. This code will run on multiple threads simultaneously.

Creating Shader Parameters #

The Custom Shader Particle Affector lets you input floats and colours, with sliders, colour controls, check boxes or menu options.

These parameters are declared in the example script like so:

float Freq_X < string propertyName = "Freq X"; > = 1.0f;
float Freq_Y < string propertyName = "Freq Y"; > = 0.0f;
float Freq_Z < string propertyName = "Freq Z"; > = 1.0f;
float Rotate_All = 0.0f;
float Scale_All = 0.0f;

This is just a code snippet. You can download the full example script here.

All global parameters without semantic (: PARAM) binding are user params.

The property name can be set with < ... > annotations to describe its attributes. Supported annotations for properties are as follows:

Custom RW buffers also support the following annotations:

For example:

// Would create a slider named Freq Y, which has the default range of -10.0 to 10,0, and a default value of 0.
float Freq_Y <
string propertyName = "Freq Y";
float propertyMin = -10.0f;
float propertyMax = 10.0f;
> = 0.0f;

// Would create a menu with options displayed as small and big, and would return 0 and 1 respectively.
float Size_Object <
string propertyName = "Size";
string propertyEnums[] = { "Small", "Big" };
> = 0.0f;

This is just a code snippet. You can download the full example script here.

If no annotations are applied, the property will be displayed with the variable name as the property name, with underscores converted to spaces. It will be assigned a value slider with a default range of 0 to 1.

Buffers #

A key part of using this node is the use of buffers. These buffers are read once per frame. They are accessed to get information on each particle. This data can then be manipulated and saved back into the writable buffers. The buffers will then be used to update the properties of each particle once per frame.

The buffers available to work with are as follows:

The following system values are also available:

Custom Buffers #

You can create your own custom buffers to hold information across frames. By default, each particle will have a dedicated entry in the buffer, indexed by particleIdx.

The buffers will be cleared once to 0 on load, and can be reset using the node’s reset pin. The size of a buffer item must be defined with the byteSize annotation as shown in the example script:

RWStructuredBuffer<float> RWCustomParticleBuffer <int byteSize=4;>;

You can also use the clear = true annotation to clear a custom buffer to 0 automatically every frame. This is useful when you want a buffer that reflects only the current frame’s state rather than accumulating values across frames.

The Amount Parameter #

As with lots of Notch’s other particle affectors, this node gives you a built in Amount parameter, bound to the semantic : AMOUNT. This works like a global strength value, that is controlled from the Property Editor.

It is declared in the example code like this:

float Amount : AMOUNT;

And used like this later on:

RWAffectorVelocityBuffer[particleIdx] += Velocity_Amount * float4(affectorVelocity, 0.0f);
RWVelocityTimeBuffer[particleIdx] += Force_Amount * float4(affectorVelocity, 0.0f);

Velocities and Forces #

Writing to RWAffectorVelocityBuffer applies a temporary per-frame velocity contribution that is accumulated with other affectors. Writing to RWVelocityTimeBuffer applies a direct persistent change to the particle’s velocity, more like a continuous force. The example exposes both Velocity_Amount and Force_Amount as user parameters so you can blend between the two behaviours.

Understanding the Example Affector #

What you write within the function CS_GenerateAffectorVelocities determines how your particles are affected. This is totally customisable and is where you really make your own affectors.

The example function first retrieves the particle index using GetParticleIdx, then checks the particle’s weight. If the weight is effectively zero the particle is skipped entirely, which is an important performance consideration with large particle counts.

For active particles, it reads position and velocity data, transforms the world position into the affector’s local space using WorldInverse, and samples the falloff. It then calculates a velocity direction based on the local position, scales the particle, blends the colour toward Affect_Colour, and applies a sine-wave modulated velocity contribution to create animated rippling movement. The final velocity is written to both RWAffectorVelocityBuffer and RWVelocityTimeBuffer scaled by Velocity_Amount and Force_Amount respectively.

Tips, Tricks and Considerations #

Resetting the Node #

The node can be reset by sending a momentary value of 1 into its input pin. In practice this clears all its buffers and resets its effect.

Clearing Custom Buffers Every Frame #

By default, custom buffers are cleared once on load and on reset. If you need a custom buffer to reset to 0 every frame — for example if it is used to accumulate per-frame data rather than carry state across frames — you can add the clear = true annotation when declaring the buffer:

RWStructuredBuffer<float> RWCustomParticleBuffer <int byteSize=4; bool clear=true;>;

This ensures the buffer is zeroed at the start of each frame before your shader runs.

Logging #

When you are working with this node, you may make errors in your code that cause the node not to function. For this reason, useful information is shown inside of Notch’s log window to point out where you have gone wrong. It is recommended to work with your log window open when editing your code. This can be done from View -> Log Window.

Multithreading #

This compute shader runs 64 threads simultaneously per group, each processing one particle in parallel. This is part of what makes particle systems efficient, but it introduces some rules you need to follow to avoid unpredictable results.

• Each thread owns exactly one particleIdx. As long as you only read and write to your own index, you are safe. However, if you start using the current thread to overwrite information about other particles, that information could well be overwritten by another thread that runs just after it.
• A race condition happens when two threads try to read or write the same memory location at the same time. The result is unpredictable - whichever thread wins will overwrite the other.
• Don’t assume thread execution order. Threads in different groups can run in any order.
• Always use GetParticleIdx(DispatchThreadId) to compute your index, not DispatchThreadId.x alone.

World Space vs. Local Space #

The particle affector provides both World and WorldInverse matrices. Particle positions in the buffers are in world space, so to work in the affector’s local space (for example to create effects relative to the node’s position and orientation) you need to transform positions using WorldInverse first, as the example does.

The Full Example Script #

#if 1
#include "FalloffShaderDef.h"
// Falloff API
// GetFalloff(float3 pos)
#endif

// .xyz Position of the particle, .w time that particle has left of the particle life time
StructuredBuffer<float4> PositionLifeBuffer : POSITIONLIFEBUFFER;

// .xyz Velocity of the particle, .w particle life time
StructuredBuffer<float4> VelocityTimeBuffer : VELOCITYTIMEBUFFER;

// .xyz is the particle Velocity delta for this frame
RWStructuredBuffer<float4> RWAffectorVelocityBuffer : RWAFFECTORVELOCITYBUFFER;

// .xyz is the actual Velocity of the particle, add your own to sum up to the simulated velocity
RWStructuredBuffer<float4> RWVelocityTimeBuffer : RWVELOCITYTIMEBUFFER;

RWStructuredBuffer<float4> RWColourBuffer : RWCOLOURFLOAT4BUFFER;

// .xyz is particle normal, .w is particle scale
RWStructuredBuffer<float4> RWParticleNormalBuffer : RWPARTICLENORMALFLOAT4BUFFER;

StructuredBuffer<float> ParticleWeightBuffer : PARTICLEWEIGHTBUFFER;

uint DispatchGroupCount : DISPATCHGROUPCOUNT;
uint GetParticleIdx(uint3 DispatchThreadId)
{
	return DispatchThreadId.x + DispatchThreadId.y * DispatchGroupCount * 64;
}


float4x4 World : WORLD;
float4x4 PreviousWorld : PREVIOUSWORLD;
float4x4 WorldInverse : WORLDINVERSE;
float4x4 WorldViewProjection : WORLDVIEWPROJECTION;


float Amount : AMOUNT;
float AnimationTime : ANIMATIONTIME;
float TimeDelta : TIMEDELTA;

// -- Custom Shader Parameters --
// Set your custom shader parameters here. All global parameters without semantic ( : PARAM) binding are user params.
// The property name can be set with < ... > annotations or underscores like below (the underscores are converted as spaces in the name).
// The default values given here (= 1.0f; etc) propagate into the Notch property editor for new parameters.
// Supported annotations for properties:
// * string propertyName							- name shown in the Notch property editor
// * float propertyMin								- controls the default min range of the slider property
// * float propertyMax								- controls the default max range of the slider property
// * string propertyType = "colour" / "checkbox"	- when not given, float slider is used as default
// * string propertyEnums[] = { "Small", "Big" }	- a list of property enums, gives values 0,1,.. to the shader code

float AnimFreqTime < string propertyName = "Anim Freq Time"; > = 0.0f;

float Velocity_Amount = 1.0f;
float Force_Amount = 0.0f;

float SinAmp = 1.0f;
float SinBase = 0.50f;
float SinFreqX = 2.0f;
float SinFreqAmpX = 1.0f;
float SinFreqY = 2.0f;
float SinFreqAmpY = 1.0f;

float4 Affect_Colour <string propertyType="colour";> = float4(1.0f, 1.0f, 1.0f, 1.0f);

// Custom buffers can be used for updates across frames.
// By default, each particle has one dedicated entry in the buffer (index with particleIdx).
// The buffer content is cleared once to 0, and on node Reset input signal.
// The size of a buffer item has to be defined with the byteSize annotation like below.
RWStructuredBuffer<float> RWCustomParticleBuffer <int byteSize=4;>;

[numthreads(64, 1, 1)]void CS_GenerateAffectorVelocities(uint3 GroupId : SV_GroupID,
		uint3 DispatchThreadId : SV_DispatchThreadID,
		uint3 GroupThreadId : SV_GroupThreadID,
		uint GroupIndex : SV_GroupIndex)
{
	uint particleIdx = GetParticleIdx(DispatchThreadId);

	float weight = ParticleWeightBuffer[particleIdx];

	if (abs(weight) > 1e-10f)
	{
		float4 posLife = PositionLifeBuffer[particleIdx];
		float4 velTime = RWVelocityTimeBuffer[particleIdx];

		float3 localPos = mul(float4(posLife.xyz, 1), WorldInverse).xyz;
		float dist = length(localPos.xyz);

		weight *= GetFalloff(posLife.xyz);

		float3 velDir = (mul(float4(localPos * weight * (Amount), 0), World).xyz);
		//float3 velDir = (mul(float4(float3(0.0f, 0.0f, 1.0f) * weight * (Amount), 0), World).xyz);

		// iteratively change the scale of the particle
		float4 normalScale = RWParticleNormalBuffer[particleIdx];
		normalScale.w *= (1.0f + 0.1f*Amount * weight * TimeDelta);
		RWParticleNormalBuffer[particleIdx] = normalScale;


		RWColourBuffer[particleIdx] = lerp(RWColourBuffer[particleIdx], Affect_Colour, weight);

		float3 affectorVelocity = velDir;

		// rotate around z axis
		//affectorVelocity += normalize(cross(float3(0.0f, 0.0f, 1.0f), localPos));

		affectorVelocity *= SinAmp * (SinBase + sin(length(localPos) + AnimationTime + SinFreqAmpX * sin(localPos.x * SinFreqX + AnimFreqTime) + SinFreqAmpY * cos(localPos.y * SinFreqY + AnimFreqTime)));
		affectorVelocity *= weight * TimeDelta;

		RWAffectorVelocityBuffer[particleIdx] += Velocity_Amount * float4(affectorVelocity, 0.0f);
		RWVelocityTimeBuffer[particleIdx] += Force_Amount * float4(affectorVelocity, 0.0f);
	}
}

technique11 GenerateAffectorVelocities
{
	pass p0
	{
		SetComputeShader(CompileShader(cs_5_0, CS_GenerateAffectorVelocities()));
	}
};

Parameters

Inputs
