Fluid MPM Affector

Fluid MPM Affector

Updated: 2 Sep 2025

Simulates fluid dynamics on Particles with an MLS-MPM simulation.

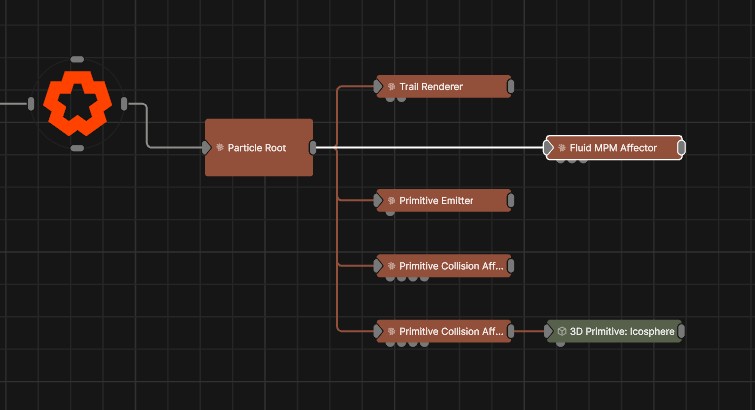

Example .dfx

Method #

This node applies a fluid simulation using a variant of the MLS-MPM (Moving Least Squares - Material Point Method) fluid solver. This fluid simulation method can generate faster and more stable fluid simulations than other methods, while also highly detailed, better at settling over time, and maintains volume throughout. Best used for water simulations, not designed for high viscosity lquids (e.g, toothpaste).

The MPM simulation is an adaptive voxel based method, meaning the fluid is broken up into a grid cells which run the fluid sim, and the simulation is only calculated for the cells which contain particles. This means the sim is generally efficient, but it can be slower if every cell has a particle in it.

Parameters

These properties control the 3D transforms of the node. Transforms will generally be inherited by child nodes, although they can be ignored through the Inherit Transform Channels attributes.

ParameterDetails
Position X The objects position along the local x-axis.
Position Y The objects position along the local y-axis.
Position Z The objects position along the local z-axis.
Rotation Heading The objects rotation around the local y-axis.
Rotation Pitch The objects rotation around the local x-axis.
Rotation Bank The objects rotation around the local z-axis.
Scale X The objects scale along the local x-axis.
Scale Y The objects scale along the local y-axis.
Scale Z The objects scale along the local z-axis.

Control the inheritance of the transforms from the parent.

ParameterDetails
Position Toggle inheritance of the Position from the parent.
Rotation Toggle inheritance of the Rotation from the parent.
Scale Toggle inheritance of the Scale from the parent.
World Position Only Inherit the world position from the parent only, rotation and scale will be ignored. Overrides above properties.
Inherit Time Toggle inheritance of time from the parent.
ParameterDetails
Cell Size Size of an individual cell within the fluid sim. Larger cells increase performance, but can lower accuracy of fluids which are meant to be more detailed.
Grid Size The maximum size for the fluid to simulate within. Greater size can impact performance, depending on how far the the particles spread througout the grid.
Gravity Constant downward force on the particles.
Dampening Reduces the particle velocities over time. Useful for improving stability, and acting as a resistive force to particle motion in the scene.
Viscosity Smooths the velocities of all particles in the sim, making them tend to move together in the same direction. It can make the particles appear more viscous, but it’s aimed at softening the shapes in a fluid sim. High viscosity fluids, such as toothpaste or silly putty, aren’t supported.
Surface Tension Pulls particles together to form a surface that bounds the liquid. Higher values will create larger droplets.
Rest Density Controls the density and how close the particles will be packed together. Push particles closer together, so more particles may be required to maintain the same volume.
Solid Boundary Optionally treat the bounds of the sim as solid walls, to prevent particles from leaving the simulation space.

Inputs

NameDescriptionTypical Input
Affected EmittersControl which Emitters are affected by the Affector. By default, all emitters in the field system are affected.Primitive Emitter
Procedural FalloffUse the distance field from a procedural system to vary how strong the affector is.Procedural Root
WeightmapTBCTBC
Transform ModifiersApply the transforms of another node to this node.Null
Target NodeModifiy the rotations of the node to always direct the z axis towards the input.Null
Local Transform OverrideApply the transforms of another node to this node, relative to its parent.Null
