Updated: 25 Feb 2025

Generate a simple colour pattern.

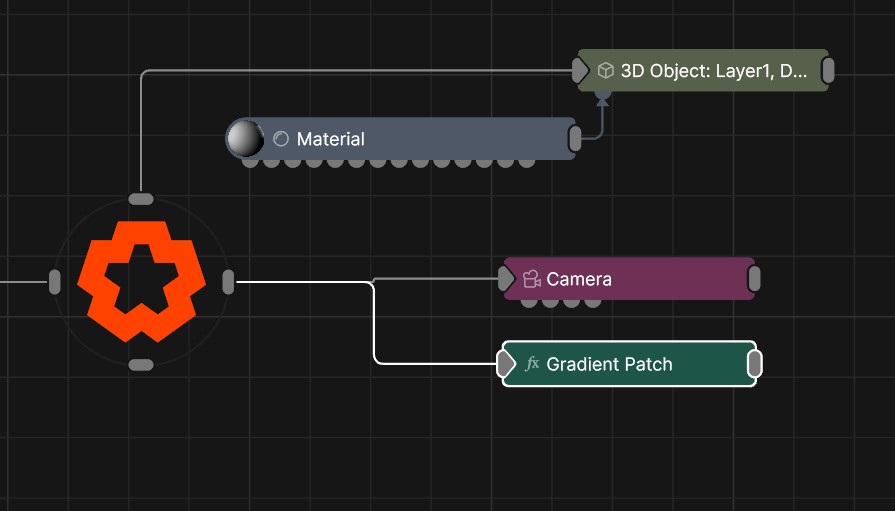

Example .dfx

Method #

This node generates a 2D array of colours, with gradients blending between them.

Parameters

These properties control the 3D transforms of the node. Transforms will generally be inherited by child nodes, although they can be ignored through the Inherit Transform Channels attributes.

ParameterDetails
Position X The objects position along the local x-axis.
Position Y The objects position along the local y-axis.
Position Z The objects position along the local z-axis.
Rotation Heading The objects rotation around the local y-axis.
Rotation Pitch The objects rotation around the local x-axis.
Rotation Bank The objects rotation around the local z-axis.
Scale X The objects scale along the local x-axis.
Scale Y The objects scale along the local y-axis.
Scale Z The objects scale along the local z-axis.

Control the inheritance of the transforms from the parent.

ParameterDetails
Position Toggle inheritance of the Position from the parent.
Rotation Toggle inheritance of the Rotation from the parent.
Scale Toggle inheritance of the Scale from the parent.
World Position Only Inherit the world position from the parent only, rotation and scale will be ignored. Overrides above properties.
Inherit Time Toggle inheritance of time from the parent.

These properties control the core behaviours of the node.

ParameterDetails
Apply Mode Control how the gradient effect is applied to the scene.
Num Control Points X Number of colours along the x axis.
Num Control Points Y Number of colours along the y axis.
Alpha Control the alpha of the gradient.

These properties control the colours which are used to generate the colour patches.

Inputs

NameDescriptionTypical Input
Transform ModifiersApply the transforms of another node to this node.Null
Target NodeModifiy the rotations of the node to always direct the z axis towards the input.Null
