Scale Affector
Method #
This node changes the scale of particles as they enter its falloff region.

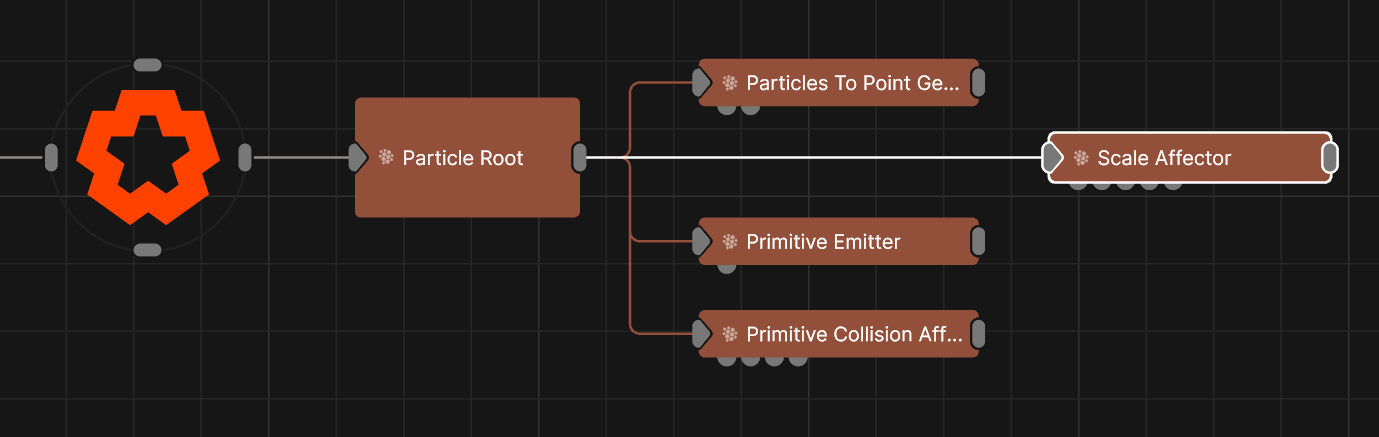

All nodes connected to this node are treated as if flowing to the parent node, and inherits any transformation changes along the chain.
Parameters
These properties control the 3D transforms of the node. Transforms will generally be inherited by child nodes, although they can be ignored through the Inherit Transform Channels attributes.
Parameter Details Position X Move along the local x-axis.
Position Y Move along the local y-axis.
Position Z Move along the local z-axis.
Rotation Heading Rotate around the local y-axis.
Rotation Pitch Rotate around the local x-axis.
Rotation Bank Rotate around the local z-axis.
Scale X Scale along the local x-axis.
Scale Y Scale along the local y-axis.
Scale Z Scale along the local z-axis.
Control the inheritance of the transforms from the parent.
Parameter Details Position Toggle inheritance of the Position from the parent.
Rotation Toggle inheritance of the Rotation from the parent.
Scale Toggle inheritance of the Scale from the parent.
World Position Only Inherit the world position from the parent only, rotation and scale will be ignored. Overrides above properties.
Inherit Time Toggle inheritance of time from the parent.
These properties control the core behaviours of the node.
Parameter Details Scale Amount How much to scale all particles by.
Radius Alter the outer radius at which the affector is no longer effective.
Inner Radius Alter the inner radius up to which the affector is fully effective.
Randomness How much randomness is added in the particles movement.
Blend Mode How the changes to the Scale Amount will affect the particles.
- Blend : Multiplies the Scale Amount and the current particle scale.
- Add : The Scale Amount will be added to the current value.
- Subtract : The Scale Amount will be subtracted from the current value.
- Max : The larger value between the Scale Amount and the current particle size is chosen.
- Min : The smaller value between the Scale Amount and the current particle size is chosen.
Falloff Shape Select which shape to calculate the falloff from.
Life Effect Coeffs How much the particles are affected by the affector at different stages of the particles life cycle. Values 1 and 2 are control points used to control a bezier curve between values 0 and 3.
Inputs
These properties control the 3D transforms of the node. Transforms will generally be inherited by child nodes, although they can be ignored through the Inherit Transform Channels attributes.
| Parameter | Details |
|---|---|
| Position X | Move along the local x-axis. |
| Position Y | Move along the local y-axis. |
| Position Z | Move along the local z-axis. |
| Rotation Heading | Rotate around the local y-axis. |
| Rotation Pitch | Rotate around the local x-axis. |
| Rotation Bank | Rotate around the local z-axis. |
| Scale X | Scale along the local x-axis. |
| Scale Y | Scale along the local y-axis. |
| Scale Z | Scale along the local z-axis. |
Control the inheritance of the transforms from the parent.
| Parameter | Details |
|---|---|
| Position | Toggle inheritance of the Position from the parent. |
| Rotation | Toggle inheritance of the Rotation from the parent. |
| Scale | Toggle inheritance of the Scale from the parent. |
| World Position Only | Inherit the world position from the parent only, rotation and scale will be ignored. Overrides above properties. |
| Inherit Time | Toggle inheritance of time from the parent. |
These properties control the core behaviours of the node.
| Parameter | Details |
|---|---|
| Scale Amount | How much to scale all particles by. |
| Radius | Alter the outer radius at which the affector is no longer effective. |
| Inner Radius | Alter the inner radius up to which the affector is fully effective. |
| Randomness | How much randomness is added in the particles movement. |
| Blend Mode | How the changes to the Scale Amount will affect the particles.
|
| Falloff Shape | Select which shape to calculate the falloff from. |
| Life Effect Coeffs | How much the particles are affected by the affector at different stages of the particles life cycle. Values 1 and 2 are control points used to control a bezier curve between values 0 and 3. |
| Name | Description | Typical Input |
|---|---|---|
| Mask Node | Mask out areas that particles cannot spawn. | Image Plane |
| Affected Emitters | Choose which particle emitters can be affected by the affector. | Primitive Emitter |
| Procedural Falloff | Use the distance field from a procedural system to vary how strong the affector is. | Procedural Root |
| Transform Modifiers | Apply the transforms of another node to this node. | Null |
| Target Node | Modifiy the rotations of the node to always direct the z axis towards the input. | Null |
| Local Transform Override | Apply the transforms of another node to this node, relative to its parent. | Null |
