Procedural Affector
Updated: 18 Feb 2025
Allows particles to interact with procedurals.
Procedural Affector
Method #
This node simulates collisions between particles and Procedural meshing object. Different effects can be achieved, such as attraction and repulsion from object surfaces or making particles flow around the particle surface, as selected by the Mode parameter.

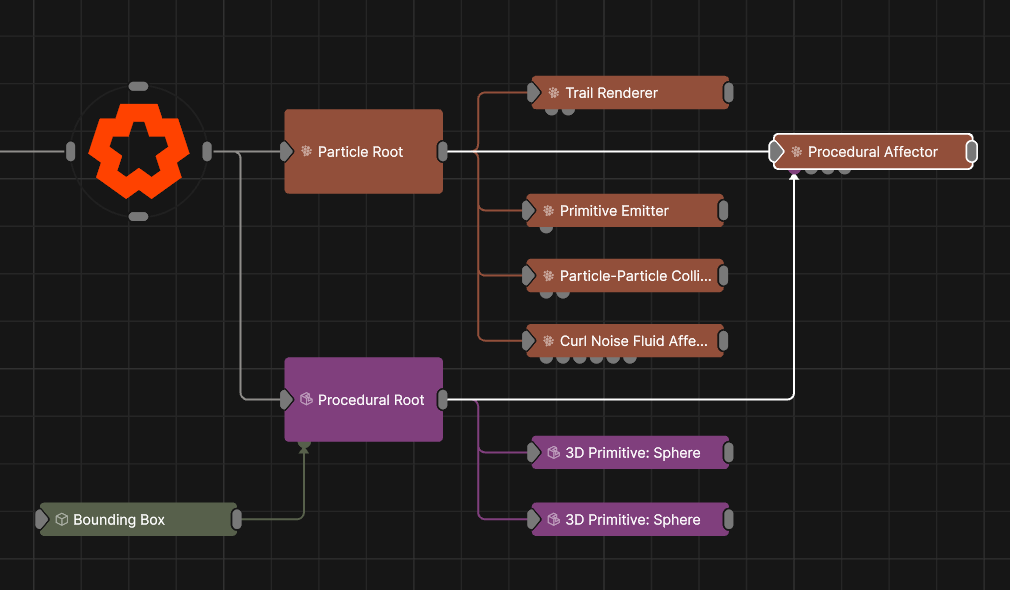

At least one Procedural Object Node must be connected via the Procedural Nodes input for this node to be effective.
Parameters
These properties control the core behaviours of the node.
Parameter Details Mode
Choose how the node interacts with the input object.
- Attractor : Moves the particles towards the mesh.
- Repel : Moves the particles away from the mesh.
- Collision : Particles collide with the object and bounce off.
- Follow Contours : Particles flow around the surface of the object.
Radius
Limit the radius at which particles can be affected by the affector.
Velocity Scale
Scale the strength of the affectors velocity on the particles.
Life Effect Coeffs
How much the particles are affected by the affector at different stages of the particles life cycle. Values 1 and 2 are control points used to control a bezier curve between values 0 and 3.
Colour Weight
Controls how much the colour value generated by the affector is blended with the particle’s current colour.
Collision Velocity Scale
Scales the velocity of the particle after a collision so they can be made to slow down.
Is Inside Threshold
Distance inside or outside the object at which collisions are considered to have occured.
Surface Distance Target
The radius of the particle when determining collisions.
On Surface Velocity Scale
Scales the velocity of the particle when it is on the surface of the object.
Collision Event Likeliness
Controls for what fraction of collisions a collision event should be triggered.
Use Colours
Toggle whether to use the colours input by the mesh.
Invert Space
Invert the object so areas inside the mesh are considered hollow and areas outside are filled.
Inputs
These properties control the core behaviours of the node.
| Parameter | Details |
|---|---|
| Mode |
Choose how the node interacts with the input object.
|
| Radius | Limit the radius at which particles can be affected by the affector. |
| Velocity Scale | Scale the strength of the affectors velocity on the particles. |
| Life Effect Coeffs | How much the particles are affected by the affector at different stages of the particles life cycle. Values 1 and 2 are control points used to control a bezier curve between values 0 and 3. |
| Colour Weight | Controls how much the colour value generated by the affector is blended with the particle’s current colour. |
| Collision Velocity Scale | Scales the velocity of the particle after a collision so they can be made to slow down. |
| Is Inside Threshold | Distance inside or outside the object at which collisions are considered to have occured. |
| Surface Distance Target | The radius of the particle when determining collisions. |
| On Surface Velocity Scale | Scales the velocity of the particle when it is on the surface of the object. |
| Collision Event Likeliness | Controls for what fraction of collisions a collision event should be triggered. |
| Use Colours | Toggle whether to use the colours input by the mesh. |
| Invert Space | Invert the object so areas inside the mesh are considered hollow and areas outside are filled. |
| Name | Description | Typical Input |
|---|---|---|
| Procedural Node | The source Procedural mesh for the particles to be affected by. | Procedural Meshing |
| Affected Emitters | Choose which particle emitters can be affected by the affector. | Primitive Emitter |
| Procedural Falloff | Use the distance field from a procedural system to vary how strong the affector is. | Procedural Root |
| Transform Modifiers | Apply the transforms of another node to this node. | Null |
| Target Node | Modifiy the rotations of the node to always direct the z axis towards the input. | Null |
| Local Transform Override | Apply the transforms of another node to this node, relative to its parent. | Null |
