Spring Effector
Updated: 4 Dec 2023
Modifiers a cloner system by adding a springiness to Clone transformations.
Spring Effector

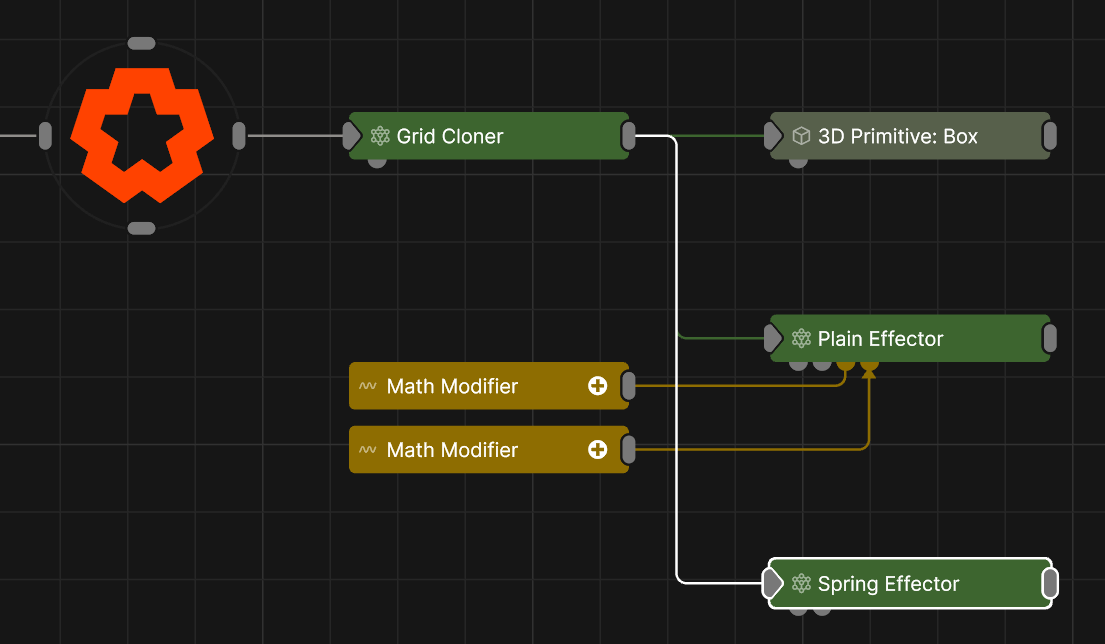

Method #
This node provides a springiness to clones by keeping track of their original positions before being effected and pulling them back into position.
Unlike other cloner nodes, this Effector is a simulation node. This means that jumping in time will not produce predictable results, as the simulation needs to process the frames in between.
Connect the output to the effector input of any cloner node to apply it to the camera system. Multiple effectors connected to the same output will stack, and order of operations chosen by position on the nodegraph.
Parameters
These properties control the 3D transforms of the node. Transforms will generally be inherited by child nodes, although they can be ignored through the Inherit Transform Channels attributes.
Parameter Details Position X
The objects position along the local x-axis.
Position Y
The objects position along the local y-axis.
Position Z
The objects position along the local z-axis.
Rotation Heading
The objects rotation around the local y-axis.
Rotation Pitch
The objects rotation around the local x-axis.
Rotation Bank
The objects rotation around the local z-axis.
Scale X
The objects scale along the local x-axis.
Scale Y
The objects scale along the local y-axis.
Scale Z
The objects scale along the local z-axis.
Control the inheritance of the transforms from the parent.
Parameter Details Position
Toggle inheritance of the Position from the parent.
Rotation
Toggle inheritance of the Rotation from the parent.
Scale
Toggle inheritance of the Scale from the parent.
World Position Only
Inherit the world position from the parent only, rotation and scale will be ignored. Overrides above properties.
Inherit Time
Toggle inheritance of time from the parent.
These properties control the core behaviours of the node.
Parameter Details Blend Amount
Controls the amount the resulting transforms of each clone after the effector is applied is blended with the original transform.
Space
The transform space the Effector uses to influence the clones.
- Effector - World : Use the world space transforms of the effector to influence the clones.
- Cloner : Use the transforms in local space to the cloner to influence the clones.
- Object : Use the transforms in object space to influence the clones.
Animation Rate
How quickly the effector animates across the clones.
Spring Speed
How quickly the clones are pulled back to their original positions.
Spring Dampening
How much dampening is applied to the movements of the clones, so that they eventually slow to a stop.
Update Time Mode
Change how the clone animation uses time.
- Locked To Timecode : The effect is synchronised with the timecode, so changes in time will always yield the same results.
- Running / Loopable : The effect is generated on a separate time to the timecode, ignoring composition loops. Useful for Real-Time exports, where content needs to play indefinitely. Not suitable for looping videos.
Spring Mode
The method by which the clone position to spring back from is determined.
- Effectors In Chain : All clone effectors before the Spring Effector in the chain - anything moving the clone away from its initial position - determine the spring position.
- Effector Children : Only effectors parented to the Spring Effector will determine the spring initial position.
These properties control where an effector can affect the clones.
Parameter Details Falloff Mode
Change how the falloff from the original object is calculated.
- Infinite : There is no falloff, all objects will be affected equally.
- Linear : Falloff is based on distance from an infinite plane along a chose axis.
- Sphere : Falloff is based on distance from the plain effectors origin.
- Procedural : Uses a connected procedural system to describe the falloff area. A procedural node must be input for this property to function.
- Box : Falloff is based on the distance around a box based at the effectors origin.
Linear Falloff Axis
The falloff axis to use when the effector is in linear mode.
- +X : The positive x axis.
- -X : The negative x axis.
- +Y : The positive y axis
- -Y : The negative y axis.
- +Z : The positive z axis.
- -Z : The negative z axis.
Falloff
The outer radius of the falloff, where the effector no longer effects the clones.
Inner Falloff
The inner radius of the falloff, where the effector effects the clones strongest.
Falloff Power
Change how quickly the nodes falloff from the effector
Falloff Size
The X size of the falloff when in box mode.
Invert Falloff
Invert the direction of the falloff.
These properties control the selection of clones that you want the effector to influence.
Parameter Details Selection Mode
Set the mode for Index-Based Weighting.
- Disabled : Effector influences all clones.
- ID : Use clone IDs to define which clones the effector influences.
- Index : Use clone indexes to define which clones the effector influences.
Selection Operation
Set how you want top define the selection.
- Index : Select a specific clone that will be influenced by the effector.
- Range : Select a range of clones that will be influenced by the effector.
- Step : Select every n clone to be influenced by the effector.
- Random In Range : Clones will be selected randomly to be influenced within a set range.
Index
The first clone index in the range.
Max Index
The last clone index in the range.
Index Step
The increment used in “Step” mode.
Index Seed
The seed used in “Random In Range” mode.
Index Falloff Range
Falloff amount for Index-Based Weighting.
Index Falloff Power
The curve power of the falloff for Index-Based Weighting.
These properties control how an effector transforms the clones.
Parameter Details Position X
Offset the clones x position from the current position.
Position Y
Offset the clones y position from the current position.
Position Z
Offset the clones z position from the current position.
Rotation Heading
Offset the clones y rotation from the current rotation.
Rotation Pitch
Offset the clones z rotation from the current rotation.
Rotation Bank
Offset the clones x rotation from the current rotation.
Scale X
Offset the clones x scale from the current scale.
Scale Y
Offset the clones y scale from the current scale.
Scale Z
Offset the clones z scale from the current scale.
Apply To Position
Apply the position changes from the effector to the clones.
Apply To Rotation
Apply the rotation changes from the effector to the clones.
Apply To Scale
Apply the scale changes from the effector to the clones.
Position Apply Mode
The method by which the effectors position properties are applied to the clone. Affecting the previously applied position values.
- Add : The effector position is weighted by the falloff and added to the clone’s previous position.
- Multiply : The effector position is weighted by the falloff and multiplied by the clone’s previous position.
- Replace : The effector position is weighted by the falloff and replaces the clone’s previous position.
Rotation Apply Mode
The method by which the effectors rotation properties are applied to the clone. Affecting the previously applied rotation values.
- Add : The effector rotation is weighted by the falloff and added to the clone’s previous rotation.
- Multiply : The effector rotation is weighted by the falloff and multiplied by the clone’s previous rotation.
- Replace : The effector rotation is weighted by the falloff and replaces the clone’s previous rotation.
Scale Apply Mode
The method by which the effectors scale properties are applied to the clone. Affecting the previously applied scale values.
- Add : The effector scale is weighted by the falloff and added to the clone’s previous scale.
- Multiply : The effector scale is weighted by the falloff and multiplied to the clone’s previous scale.
- Replace : The effector scale is weighted by the falloff and replaces the clone’s previous scale.
Inputs
These properties control the 3D transforms of the node. Transforms will generally be inherited by child nodes, although they can be ignored through the Inherit Transform Channels attributes.
| Parameter | Details |
|---|---|
| Position X | The objects position along the local x-axis. |
| Position Y | The objects position along the local y-axis. |
| Position Z | The objects position along the local z-axis. |
| Rotation Heading | The objects rotation around the local y-axis. |
| Rotation Pitch | The objects rotation around the local x-axis. |
| Rotation Bank | The objects rotation around the local z-axis. |
| Scale X | The objects scale along the local x-axis. |
| Scale Y | The objects scale along the local y-axis. |
| Scale Z | The objects scale along the local z-axis. |
Control the inheritance of the transforms from the parent.
| Parameter | Details |
|---|---|
| Position | Toggle inheritance of the Position from the parent. |
| Rotation | Toggle inheritance of the Rotation from the parent. |
| Scale | Toggle inheritance of the Scale from the parent. |
| World Position Only | Inherit the world position from the parent only, rotation and scale will be ignored. Overrides above properties. |
| Inherit Time | Toggle inheritance of time from the parent. |
These properties control the core behaviours of the node.
| Parameter | Details |
|---|---|
| Blend Amount | Controls the amount the resulting transforms of each clone after the effector is applied is blended with the original transform. |
| Space |
The transform space the Effector uses to influence the clones.
|
| Animation Rate | How quickly the effector animates across the clones. |
| Spring Speed | How quickly the clones are pulled back to their original positions. |
| Spring Dampening | How much dampening is applied to the movements of the clones, so that they eventually slow to a stop. |
| Update Time Mode |
Change how the clone animation uses time.
|
| Spring Mode |
The method by which the clone position to spring back from is determined.
|
These properties control where an effector can affect the clones.
| Parameter | Details |
|---|---|
| Falloff Mode |
Change how the falloff from the original object is calculated.
|
| Linear Falloff Axis |
The falloff axis to use when the effector is in linear mode.
|
| Falloff | The outer radius of the falloff, where the effector no longer effects the clones. |
| Inner Falloff | The inner radius of the falloff, where the effector effects the clones strongest. |
| Falloff Power | Change how quickly the nodes falloff from the effector |
| Falloff Size | The X size of the falloff when in box mode. |
| Invert Falloff | Invert the direction of the falloff. |
These properties control the selection of clones that you want the effector to influence.
| Parameter | Details |
|---|---|
| Selection Mode |
Set the mode for Index-Based Weighting.
|
| Selection Operation |
Set how you want top define the selection.
|
| Index | The first clone index in the range. |
| Max Index | The last clone index in the range. |
| Index Step | The increment used in “Step” mode. |
| Index Seed | The seed used in “Random In Range” mode. |
| Index Falloff Range | Falloff amount for Index-Based Weighting. |
| Index Falloff Power | The curve power of the falloff for Index-Based Weighting. |
These properties control how an effector transforms the clones.
| Parameter | Details |
|---|---|
| Position X | Offset the clones x position from the current position. |
| Position Y | Offset the clones y position from the current position. |
| Position Z | Offset the clones z position from the current position. |
| Rotation Heading | Offset the clones y rotation from the current rotation. |
| Rotation Pitch | Offset the clones z rotation from the current rotation. |
| Rotation Bank | Offset the clones x rotation from the current rotation. |
| Scale X | Offset the clones x scale from the current scale. |
| Scale Y | Offset the clones y scale from the current scale. |
| Scale Z | Offset the clones z scale from the current scale. |
| Apply To Position | Apply the position changes from the effector to the clones. |
| Apply To Rotation | Apply the rotation changes from the effector to the clones. |
| Apply To Scale | Apply the scale changes from the effector to the clones. |
| Position Apply Mode |
The method by which the effectors position properties are applied to the clone. Affecting the previously applied position values.
|
| Rotation Apply Mode |
The method by which the effectors rotation properties are applied to the clone. Affecting the previously applied rotation values.
|
| Scale Apply Mode |
The method by which the effectors scale properties are applied to the clone. Affecting the previously applied scale values.
|
| Name | Description | Typical Input |
|---|---|---|
| Procedural Falloff | Use a procedural system to generate falloff from. Useful for creating complex and unconventional falloffs from an Effector. | Procedural Root |
| Transform Modifiers | Apply the transforms of another node to this node. | Null |
| Target Node | Modifiy the rotations of the node to always direct the z axis towards the input. | Null |
| Local Transform Override | Apply the transforms of another node to this node, relative to its parent. | Null |
