Freeze Geometry
Merges sources of geometry together, and freezes updates to save on processing.
Freeze Geometry
Method #
Combines multiple geometry nodes and freezes them into a single mesh, preserving the materials of the source geometry. The resulting mesh is static: it won’t be regenerated or updated again until the timeline is reset.
Once frozen, the source geometry nodes are disabled from rendering and updating; they will appear hashed out in the nodegraph, with a “frozen” icon on top. Do not hide the source geometry nodes manually or the Freeze Geometry node will be not regenerate them.
When the Freeze Geometry node is disabled or it becomes inactive because the time bar is out of range, the source geometry nodes are restored to visibility.
The diffuse/lightmap UV set for the source geometry is laid out onto a grid, with a cell per input geometry node, preserving the uniqueness of these UVs for lightmap baking for use with the Bake Lighting To Object node.
This node is useful for combining several pieces of geometry into one, to optimise complex scenes with lots of nodes. In some cases, substantial performance improvements can be found.

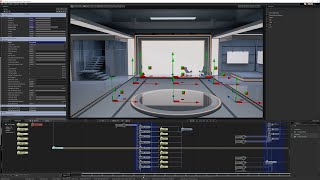

Rendered Lightmap
This node outputs the normal transformation and translation values, but it also outputs geometry which can be modified with Deformer nodes, or used as a mesh sources for nodes which accept mesh connections, such as the Field 3D Object Emitter or the Procedural 3D Object.
Parameters
These properties control how the generators are coloured and blended with other images.
Parameter Details Visible Control whether the node is visible or not to the scene.
Seen By Rays Allow the mesh to be seen by the raytracer. When set to 0, the mesh will still render in camera but will be ignored by any raytracing nodes.
Per Object Composite Alpha Overwrites the alpha channel beneath the object, giving simple effect of transparency. Best used when the mesh won’t overlap with other objects, as other meshes will not be seen through the mesh.
These properties add options for drawing all the edges of the mesh as lines. Useful for rendering wireframe effects.
Parameter Details Lines Visible Control whether lines are rendered to the scene from the geometry.
Lines Alpha Change the alpha transparency value of the lines, making them appear see-through.
Colour Change the colour value of the lines.
Use Vertex Colours Colour lines based on the vertex colours of the geometry.
Blend Mode How the object lines blends with the rest of the content in a 3d scene. See Blend Modes for details.
- Solid : The line rendering is treated as a solid object, and does not blend with anything behind it.
- Blend : The line rendering is blended with the rest of the content in the scene, with a subtle gradient over the line edges.
- Additive : The line rendering adds onto the rest of the content in the scene.
- Subtractive : The line rendering subtracts from the rest of the content in the scene.
- Multiply : The line rendering multiplies with the rest of the content in the scene.
- Max : The max value between the lines and the content behind it is used.
- Min : The min value between the lines and the content behind it is used.
- Light : The line rendering is blended using the light blend mode with the rest of the content in the scene.
- Screen : The line rendering is blended using the screen blend mode with the rest of the content in the scene.
- Pre-Mul Blend : The line rendering mis premultiplied before blending with the rest of the content in the scene.
Thick Lines Allow the lines to rendered with thickness, for line effects which can be accurately anti-aliased.
Hide Back Face Lines Hide the lines generated from polygon faces facing away from the camera, where only the back faces of geometry can be seen.
Lock Width Lock the line width to be a consistent width regardless of distance from the camera. Only functions with Thick Lines enabled.
Thick Line Width Control the thickness of all the lines. Only functions with Thick Lines enabled.
Show Silhouette Lines Draws lines along the edges of the object relative to the camera.
Show Normal Difference Lines Draw a line along the edges of the mesh, depending on the angle difference between their mutual faces.
Show Unshared Lines Draw lines along all edges of the shape.
Show Other Lines Show all the lines for each edge of the mesh.
Unshared Lines Weight Control the strength of the unshared lines.
Silhouette Lines Weight Control the strength of the silhouette lines.
Normal Difference Lines Weight Control the strength of the lines generated along the normal angles.
Other Lines Weight Control the strength of the lines for each edge in the mesh.
Line Normal Difference Angle Change the threshold angle between two face normals that will generate a line along their common edge. Only functions with Show Normal Lines enabled.
Line Normal Fade Sharpness How much the drawn normal lines will fade away the closer the edge angle is to the Line Normal Difference Angle.
Line Depth Bias Exaggerate the width of the lines based on the distance to the camera. not functional with Lock Width enabled.
Line Silhouette Fade Sharpness How much the drawn silhouette lines will fade away based on the size of the edge angle to the camera.
Inputs
These properties control how the generators are coloured and blended with other images.
| Parameter | Details |
|---|---|
| Visible | Control whether the node is visible or not to the scene. |
| Seen By Rays | Allow the mesh to be seen by the raytracer. When set to 0, the mesh will still render in camera but will be ignored by any raytracing nodes. |
| Per Object Composite Alpha | Overwrites the alpha channel beneath the object, giving simple effect of transparency. Best used when the mesh won’t overlap with other objects, as other meshes will not be seen through the mesh. |
These properties add options for drawing all the edges of the mesh as lines. Useful for rendering wireframe effects.
| Parameter | Details |
|---|---|
| Lines Visible | Control whether lines are rendered to the scene from the geometry. |
| Lines Alpha | Change the alpha transparency value of the lines, making them appear see-through. |
| Colour | Change the colour value of the lines. |
| Use Vertex Colours | Colour lines based on the vertex colours of the geometry. |
| Blend Mode | How the object lines blends with the rest of the content in a 3d scene. See Blend Modes for details.
|
| Thick Lines | Allow the lines to rendered with thickness, for line effects which can be accurately anti-aliased. |
| Hide Back Face Lines | Hide the lines generated from polygon faces facing away from the camera, where only the back faces of geometry can be seen. |
| Lock Width | Lock the line width to be a consistent width regardless of distance from the camera. Only functions with Thick Lines enabled. |
| Thick Line Width | Control the thickness of all the lines. Only functions with Thick Lines enabled. |
| Show Silhouette Lines | Draws lines along the edges of the object relative to the camera. |
| Show Normal Difference Lines | Draw a line along the edges of the mesh, depending on the angle difference between their mutual faces. |
| Show Unshared Lines | Draw lines along all edges of the shape. |
| Show Other Lines | Show all the lines for each edge of the mesh. |
| Unshared Lines Weight | Control the strength of the unshared lines. |
| Silhouette Lines Weight | Control the strength of the silhouette lines. |
| Normal Difference Lines Weight | Control the strength of the lines generated along the normal angles. |
| Other Lines Weight | Control the strength of the lines for each edge in the mesh. |
| Line Normal Difference Angle | Change the threshold angle between two face normals that will generate a line along their common edge. Only functions with Show Normal Lines enabled. |
| Line Normal Fade Sharpness | How much the drawn normal lines will fade away the closer the edge angle is to the Line Normal Difference Angle. |
| Line Depth Bias | Exaggerate the width of the lines based on the distance to the camera. not functional with Lock Width enabled. |
| Line Silhouette Fade Sharpness | How much the drawn silhouette lines will fade away based on the size of the edge angle to the camera. |
| Name | Description | Typical Input |
|---|---|---|
| Geometry Sources | Sources of geometry to be combined into a single object. | 3D Primitive |
| Transform Modifiers | Apply the transforms of another node to this node. | Null |
| Target Node | Modifiy the rotations of the node to always direct the z axis towards the input. | Null |
| Local Transform Override | Apply the transforms of another node to this node, relative to its parent. | Null |
